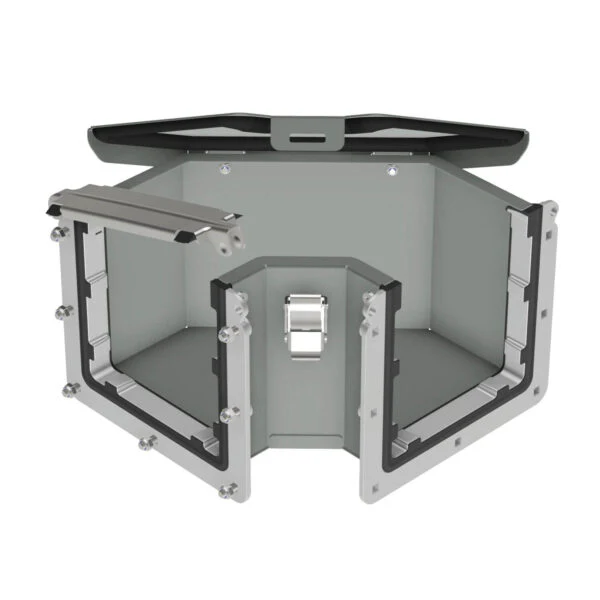

1500 ET12045 | Type 12 - Elbow 90° top opening | EXM
The re-designed 1500 series water tight lay-in wireway is a complete system that permits fast and easy installation of multiple wire runs. Each section and accessory include one side completely opened to allow lay-in of wires instead of being restricted to pull through. The wireways are made high quality 14 GA steel complete with bolted flanges. The covers are hinged and several quick release draw pull latches assure a tight closing. A high quality, poured-in-place, seamless gasket is present on the covers. The enhanced flange construction now integrates a gasket embedded directly onto the flange itself. Components are finished with heat fused powder paint, electro-statically applied on a pretreated base. Finish is ANSI/ASA61 smooth gray. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
Made of high quality code gauge steel. The cover is secured by a pull-down padlockable hasp. Elbows are finished with heat fused powder paint, electro-statically applied on a pretreated base. Paint color : ANSI 61 smooth gray. CSA Certified. UL Listed. NEMA / EEMAC 12-13. IP55.
Made of high quality code gauge steel. The cover is secured by a pull-down padlockable hasp. Elbows are finished with heat fused powder paint, electro-statically applied on a pretreated base. Paint color : ANSI 61 smooth gray. CSA Certified. UL Listed. NEMA / EEMAC 12-13. IP55.
Resources
More Info
^^The 1500 ET (top opening) elbow for 1500 series lay-in ducts are used indoors for protection against dirt, dust and oil.$133.00
Original: $379.99
-65%1500 ET12045 | Type 12 - Elbow 90° top opening | EXM—
$379.99
$133.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The re-designed 1500 series water tight lay-in wireway is a complete system that permits fast and easy installation of multiple wire runs. Each section and accessory include one side completely opened to allow lay-in of wires instead of being restricted to pull through. The wireways are made high quality 14 GA steel complete with bolted flanges. The covers are hinged and several quick release draw pull latches assure a tight closing. A high quality, poured-in-place, seamless gasket is present on the covers. The enhanced flange construction now integrates a gasket embedded directly onto the flange itself. Components are finished with heat fused powder paint, electro-statically applied on a pretreated base. Finish is ANSI/ASA61 smooth gray. CSA Certified / UL Listed NEMA/EEMAC 4-12 / IP66
Made of high quality code gauge steel. The cover is secured by a pull-down padlockable hasp. Elbows are finished with heat fused powder paint, electro-statically applied on a pretreated base. Paint color : ANSI 61 smooth gray. CSA Certified. UL Listed. NEMA / EEMAC 12-13. IP55.
Made of high quality code gauge steel. The cover is secured by a pull-down padlockable hasp. Elbows are finished with heat fused powder paint, electro-statically applied on a pretreated base. Paint color : ANSI 61 smooth gray. CSA Certified. UL Listed. NEMA / EEMAC 12-13. IP55.
Resources
More Info
^^The 1500 ET (top opening) elbow for 1500 series lay-in ducts are used indoors for protection against dirt, dust and oil.
