6500 MXFT230V | Top Cover Fan Tray (Ultra Low Noise) - 220, 240 | EXM

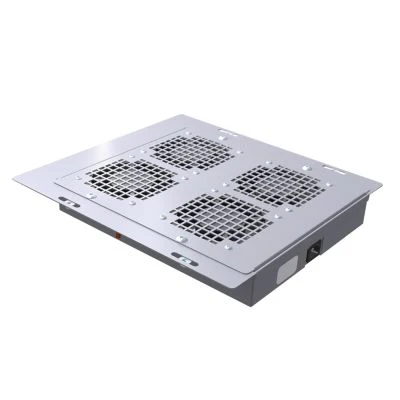

The 6500 MXFT ultra low noise top cover fan tray is installed on the top or bottom of a 600mm wide or more Mtrx cabinet. In order to install on top one must order the cable entry top cover (6500 MXTC) and replace two gland plates by the tray. For an installation on the bottom, 600mm wide cabinets only, simply remove and replace two gland plates. The tray is made of steel. Installed and serviced from the inside or outside of the enclosure. This fan tray was developed for applications where low noise and chimney active cooling is required. Fan tray kits are supplied standard with: (i) all installation hardware; (ii) four muffin fans and wire harness; (iii) One IEC-320-C14 connector. Standard finish is powder coated RAL7011 textured dark gray.CSA / UR;NEMA/EEMAC 1 / IP20Note: 120V or 230V power cord not included.
The 6500 MXFT115V operates at 110 VAC and consumes 8.24W. The 6500 MXFT115V operates at 120 VAC and consumes 7.89W. The 6500 MXFT230V operates at 220 VAC and consumes 8.00W. The 6500 MXFT230V operates at 240 VAC and consumes 7.60W.
The 6500 MXFT115V operates at 110 VAC and consumes 8.24W. The 6500 MXFT115V operates at 120 VAC and consumes 7.89W. The 6500 MXFT230V operates at 220 VAC and consumes 8.00W. The 6500 MXFT230V operates at 240 VAC and consumes 7.60W.
Resources
More Info
^^The 6500 MWDFD series is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water. Use in conjunction with the 6500 MCOFD to create a console unit.$310.45
Original: $886.99
-65%6500 MXFT230V | Top Cover Fan Tray (Ultra Low Noise) - 220, 240 | EXM—
$886.99
$310.45Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 6500 MXFT ultra low noise top cover fan tray is installed on the top or bottom of a 600mm wide or more Mtrx cabinet. In order to install on top one must order the cable entry top cover (6500 MXTC) and replace two gland plates by the tray. For an installation on the bottom, 600mm wide cabinets only, simply remove and replace two gland plates. The tray is made of steel. Installed and serviced from the inside or outside of the enclosure. This fan tray was developed for applications where low noise and chimney active cooling is required. Fan tray kits are supplied standard with: (i) all installation hardware; (ii) four muffin fans and wire harness; (iii) One IEC-320-C14 connector. Standard finish is powder coated RAL7011 textured dark gray.CSA / UR;NEMA/EEMAC 1 / IP20Note: 120V or 230V power cord not included.
The 6500 MXFT115V operates at 110 VAC and consumes 8.24W. The 6500 MXFT115V operates at 120 VAC and consumes 7.89W. The 6500 MXFT230V operates at 220 VAC and consumes 8.00W. The 6500 MXFT230V operates at 240 VAC and consumes 7.60W.
The 6500 MXFT115V operates at 110 VAC and consumes 8.24W. The 6500 MXFT115V operates at 120 VAC and consumes 7.89W. The 6500 MXFT230V operates at 220 VAC and consumes 8.00W. The 6500 MXFT230V operates at 240 VAC and consumes 7.60W.
Resources
More Info
^^The 6500 MWDFD series is used for indoor use and to protect the equipment against ingress of oil, dust, dirt and water. Use in conjunction with the 6500 MCOFD to create a console unit.
